Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine

Informations de base
Nom de marque: BAXIT
Numéro de modèle: BXT-10W/BXT-20W/BXT-500W/BXT-1000W/BXT-2000W/BXT-5000W
Quantité de commande min: 1
Prix: US $2445.0 - 10600.0 / Unit
Détails d'emballage: Boîte en carton/boîte en bois
Délai de livraison: 5-8Jour ouvrable
Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 10 000 pièces
Détail Infomation
Modèle: BXT-20W Le couple maximal: 20 N.m.
Plage de mesure: 2% à 500%N.M. Erreur relative de l'indication du couple d'essai: Niveau 1
Erreur relative d'indication de la répétabilité du couple d'essai: ≤±1% Résolution de couple: 1/500 000 du couple maximal, sans classement
Mettre en évidence:

Metal Rod Torsion Testing Machine

,

Torsion Testing Machine

,

Metal Wire Torsion Testing Machine


Description de produit

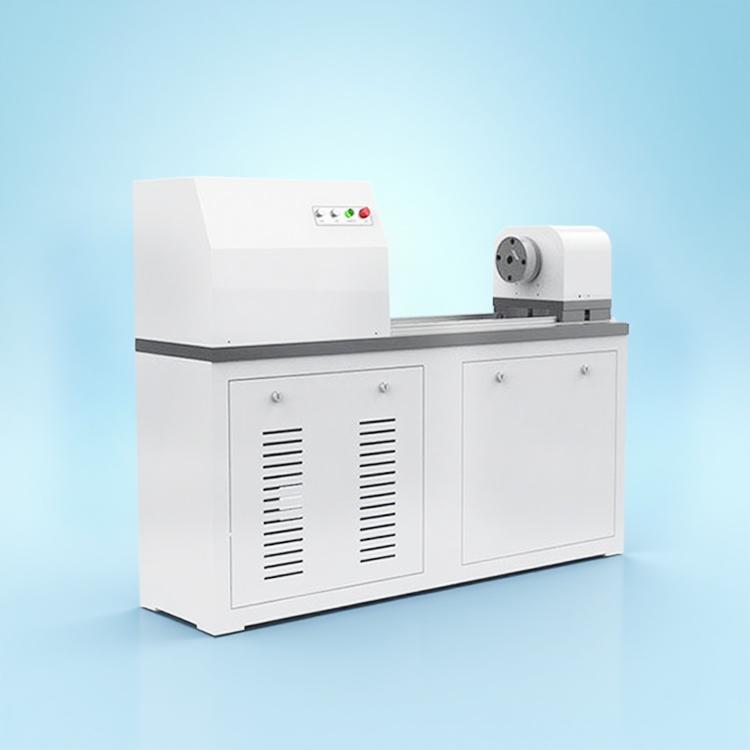

Metal wire torsion testing machine


           The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 0

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 1

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 2

Digital display type torsion testing machine
Model BXT-10W BXT-20W BXT-500W BXT-1000W BXT-2000W BXT-5000W
Maximum torque 10N.M 20N.M 500N.M 1000N.M 2000N.M 5000N.M
Measurement range 2%-500%N.M
Relative Error of Test Torque Indication Level 1
Relative Indication Error of Test Torque Repeatability ≤±1%
Torque resolution 1/500,000 of the maximum torque, without grading
Moving Distance Between Chucks 400mm
Coaxiality Accuracy Between Two Fixtures Within a range of 1000mm≤∅0.2mm
Torsion angle measurement range 0~10000°
Relative error of the torsion angle measurement ±1%
Torsion angle resolution ±0.001°
Torsion angle accuracy 0.009°
Torsional speed 0.01 - 720°/min infinitely variable speed control
Relative error of torque reversal speed Within ±1.0% of the set value
Power supply 220V 50Hz AC
Torsion Direction Forward rotation  Reverse rotation

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 3

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 4

Metal Wire Torsion Testing Machine Level 1 Metal Rod Torsion Testing Machine 5
